This diagram gives you that path. Use it.

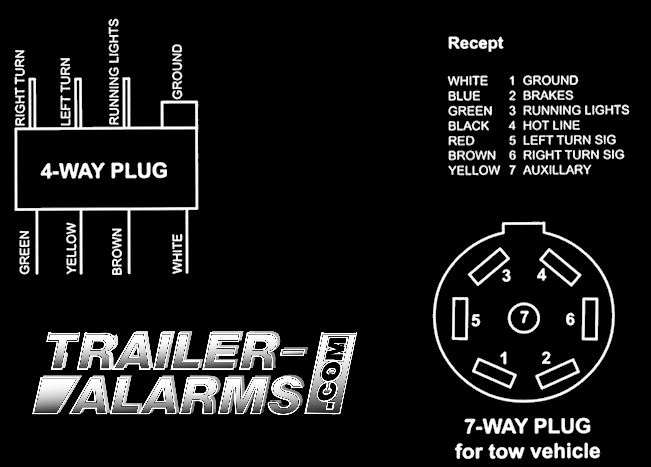

You’ve got a wiring diagram sitting in front of you… and most people will glance at it once, nod like they understand it, then immediately start guessing when something doesn’t work.

That strategy has a strong track record of wasting time.

Here’s the reality. This diagram isn’t just for installing a trailer security system. It’s a troubleshooting tool that can save you a lot of frustration.

When your lights don’t work, this gives you a roadmap instead of a guessing game.

Use it like this:

• Brake lights not working
On a 4-way, your brake signal runs through the left and right turn wires
If both sides are out, start at the vehicle
If one side is out, check that specific wire path

• Running lights out
Follow the running light circuit from the plug back into the trailer
Check for breaks, bad grounds, or corroded connections

• One turn signal not working
Trace that single wire from the plug to the light
Most of the time, it’s a loose connection or bad ground

• Nothing works at all
Start with ground
Always
A bad ground will make you question your life choices

• Intermittent issues
Look for corrosion inside the plug or a weak ground
That’s where most “it works sometimes” problems live

Now here’s where it ties back to us.

When you install a trailer security system from Trailer-Alarms.com, you’re already working in this wiring. Understanding it means:

• Faster installs
• Cleaner installs
• Fewer support calls
• Better overall system performance

And when something goes wrong later, you’re not stuck guessing. You already know where to look.

Most trailer problems aren’t complicated. They just feel that way when you don’t have a clear path.

This diagram gives you that path. Use it.
