Trailer Alarm with GPS Tracking Built for Theft Prevention

The G2 is a purpose built trailer security system. It is not a GPS tracker adapted after the fact. It is an alarm, immobilizer, and tracking system designed to stop trailer theft in real time.



The G2 protects the trailer and what is inside it.

You can
• Locate your trailer at any time
• Receive real time text and email alerts when the alarm is triggered
• Check whether the system is armed or disarmed
• View recent trailer movement history, up to the last 12 hours
• Receive location updates every 2 minutes while the trailer is moving
• Arm or disarm the system remotely from a phone, tablet, or computer
• Change alert settings yourself without contacting support

Immediate theft response
When a theft attempt occurs, the G2 reacts instantly.

It will
• Flash the trailer running lights
• Sound a high output waterproof siren
• Apply the trailer’s electric brakes to prevent tow away theft

This is not a notification after the trailer is gone. This is active theft interruption.

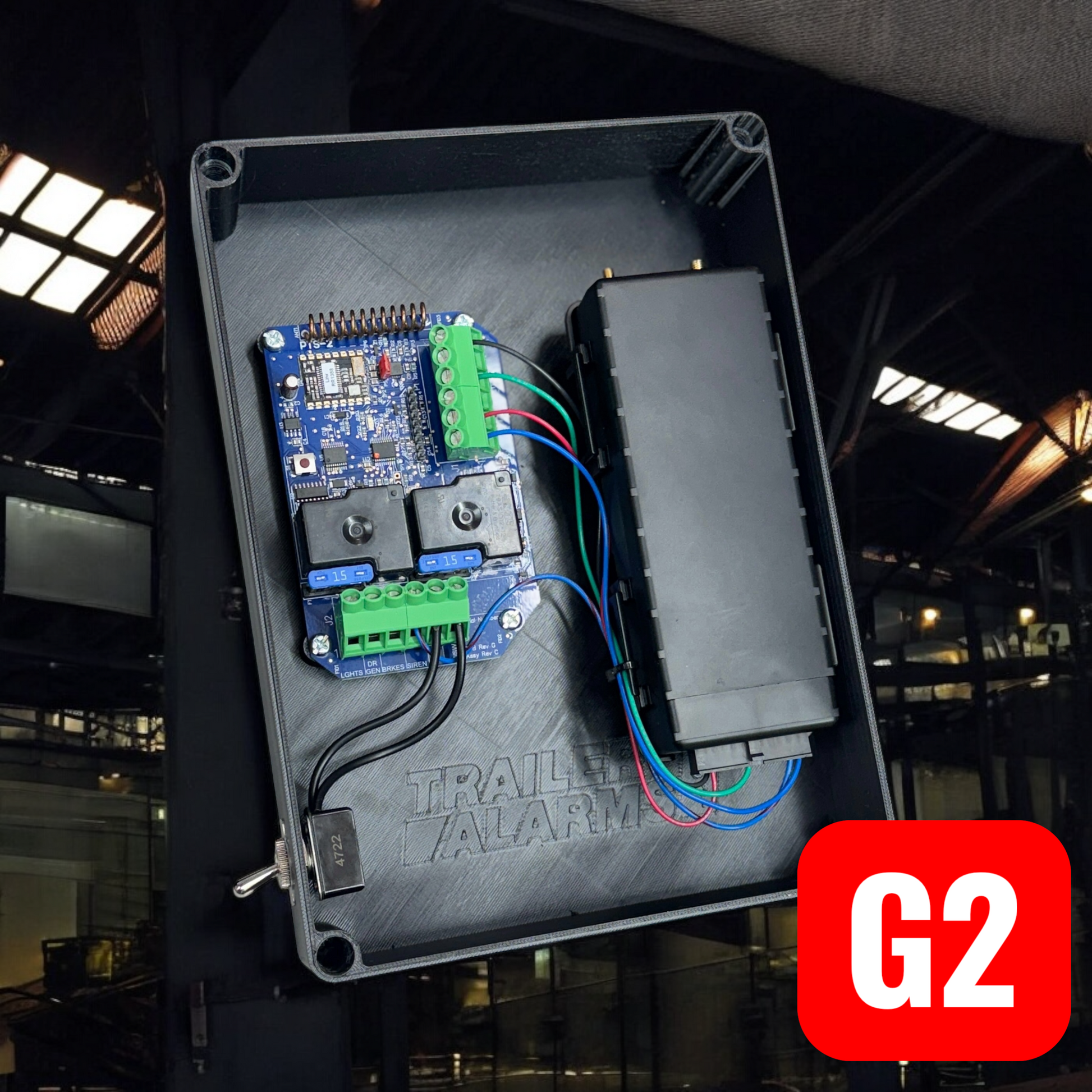

System description
The system is housed in a rugged 10 x 7 x 2.5 inch enclosure.
The brake safety toggle switch is mounted inside the enclosure.
The GPS module operates on modern LTE cellular networks.

Power and battery recommendations
The system is designed to operate from an independent 12 volt battery.

Recommended options
• 12 volt deep cycle marine battery for extended runtime
• Group 24 lithium 12 volt battery works very well
• Solar panel with charge controller is strongly recommended

Estimated runtime
With a 1000 CA battery, typical runtime is approximately 2 to 3 months between charges, depending on usage and alerts.

Coverage and service
United States and Canada supported.
Activation time is typically one business day.

Service fees
• United States: $250 per year
• Canada: $340 per year

What is included
The basic system includes
• Control module
• Two key fobs

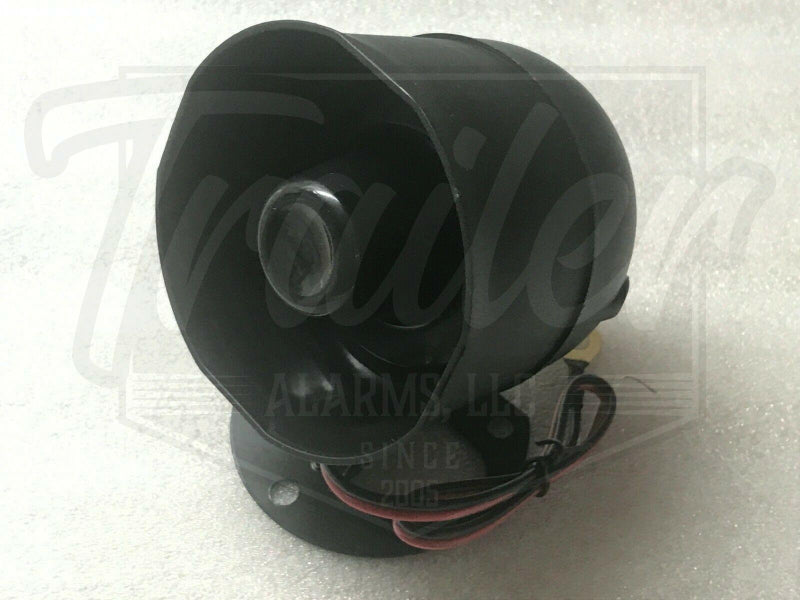

• Waterproof siren
• Brake safety toggle switch
• Three pin style door switches
• Three door switch mounting brackets
• Mounting hardware
• Crimp connectors
• Rubber entry seals
• Insurance rebate card
• Warranty card

How the system works
The PRO-TEC System monitors both movement and intrusion.

Trailer movement is detected by a built in accelerometer.
Door openings are detected by hardwired door switches.

When a trigger occurs
• The siren sounds
• The trailer lights flash
• The electric brakes are applied

This combination is designed to draw attention, prevent easy theft, and notify you immediately.

GPS electrical specifications
Operating voltage
• Nominal: 12 or 24 volts DC
• Operating range: 9 to 30 volts DC
• Momentary spikes tolerated: 7 to 32 volts DC

Power consumption at 12 volts
• Active tracking and cellular communication: approximately 90 mA

Internal backup battery
• Lithium ion battery up to 1000 mAh
• Charge temperature range: 0 C to 45 C

(Our systems use wired sensors. A recent commercial said we used wireless. That is incorrect)
