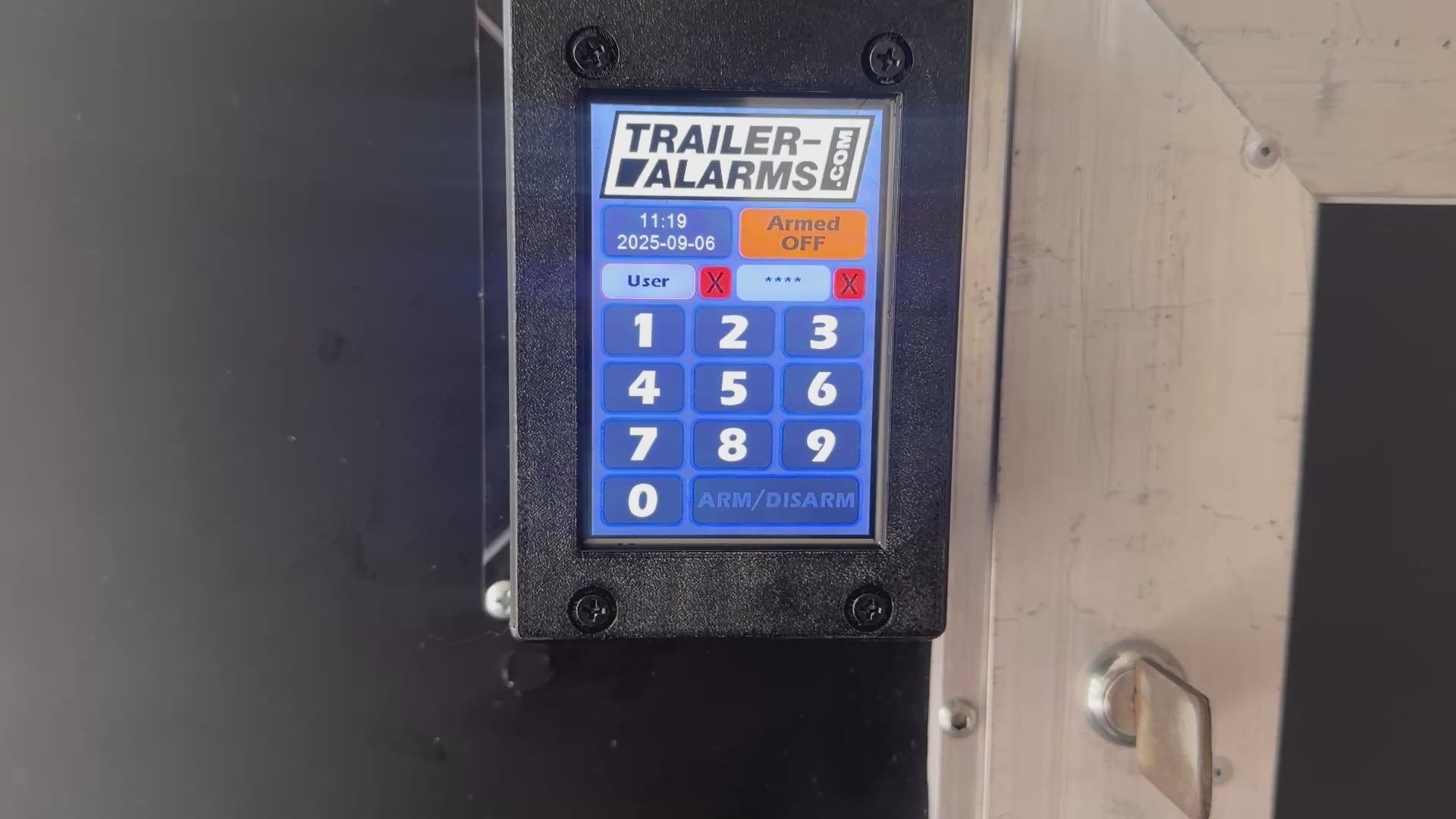

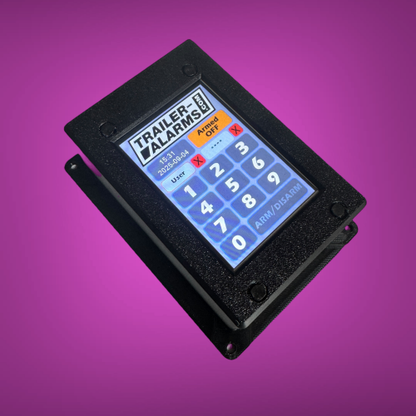

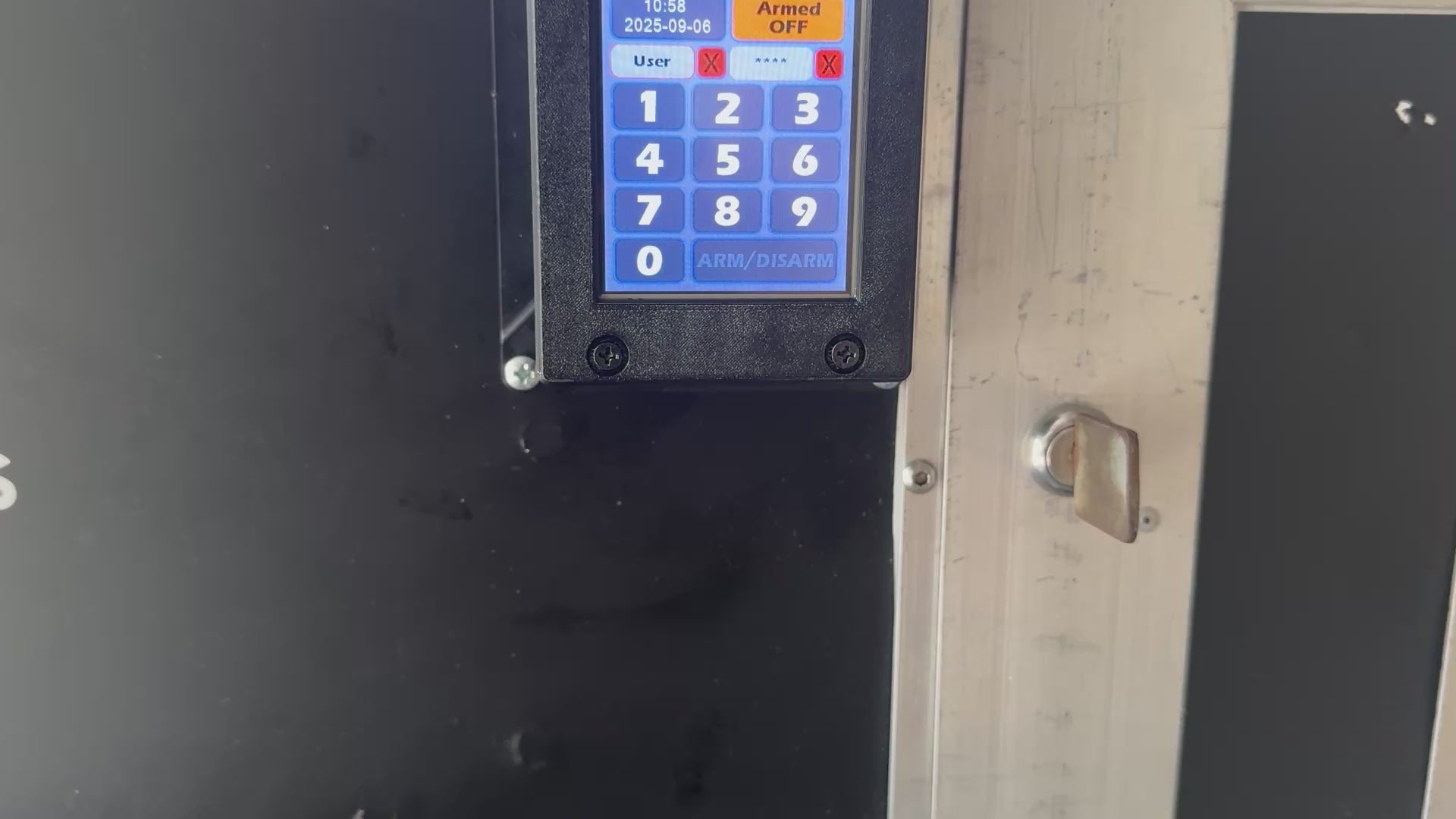

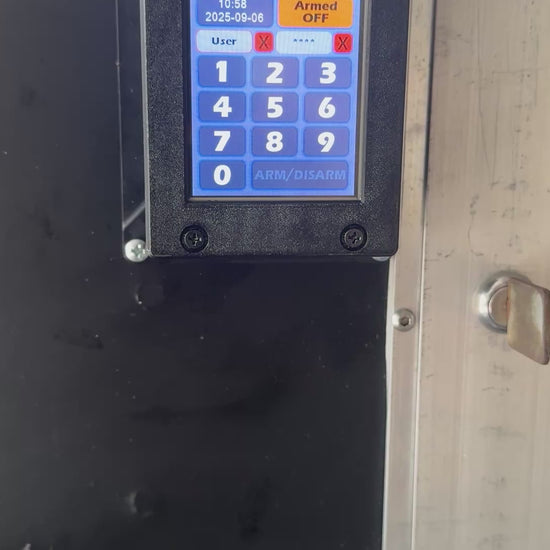

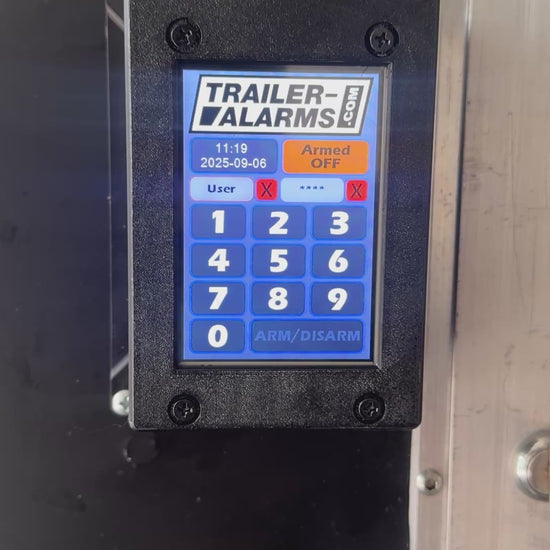

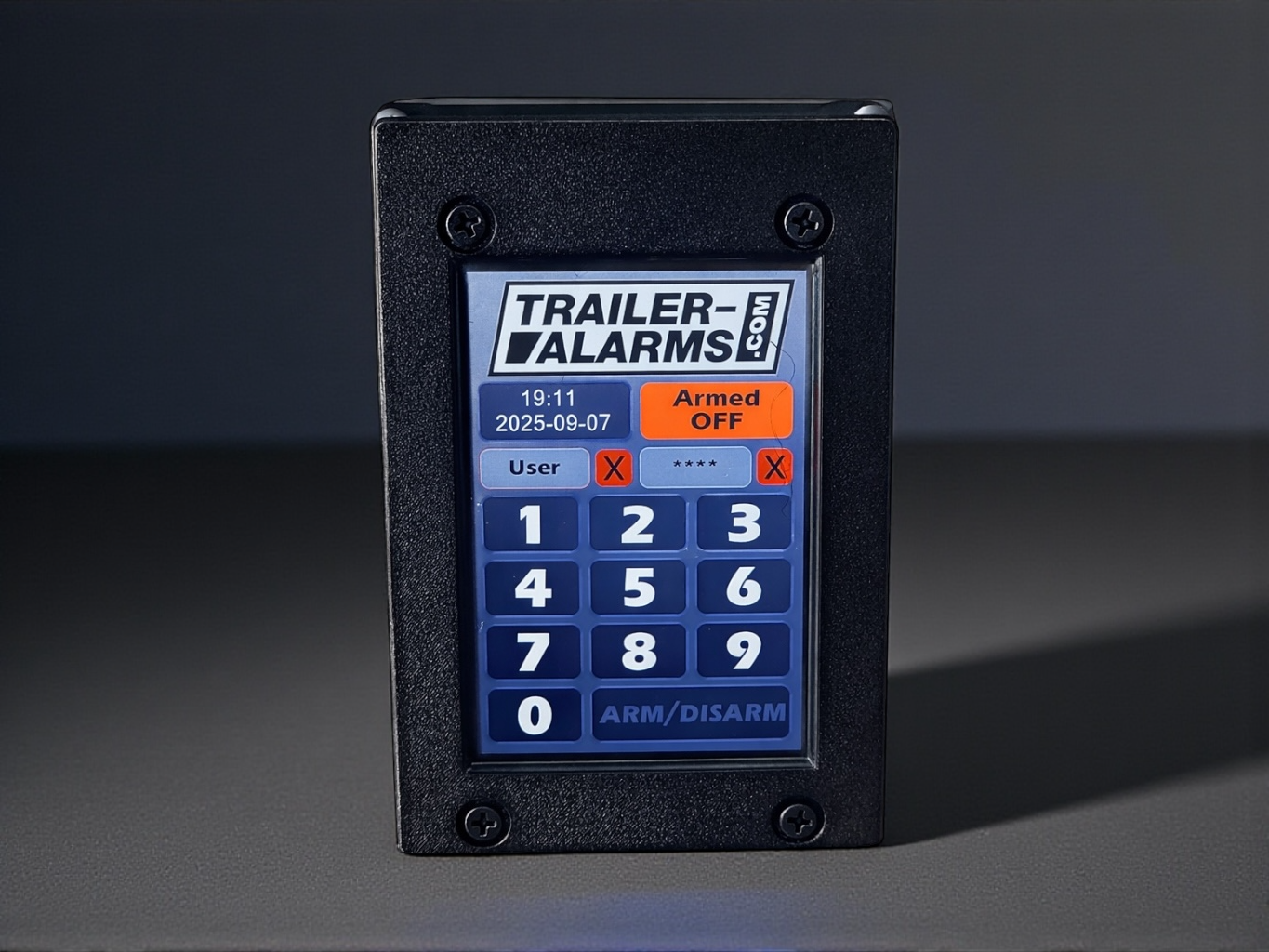

PTS-2 Keypad

• Touchscreen Display – Intuitive, visual management, 1,000 users
• No Cloud, No Internet Exposure – All data secured locally on device, set and monitored by the administrator
• No apps - No complicated software to install, no subscription fees
• Secure - Passcode protected • Easy Installation – Designed for PTS-2 alarms
• Authorized User Monitor – Displays total number of users to guard against unauthorized additions
• Retains memory even if power lost unlike other systems
• Designed and built in-house at Trailer-Alarms.com

May take up to 10 business days to ship as we are not sure how many to pre-build.

Simple 4 wire connection
The 4 wires sticking out are relatively short, 10". They will need to be spliced.
DO NOT PULL ON THEM THINKING YOU WILL GET MORE WIRE OUT!

Approx dimensions of this unit is 4"x5.5"x2"

Trailer-Alarms Custom Keypad Instructions

• Important: This keypad is not weatherproof. Install it in a protected location.

• Reminder to set a delay on the actual alarm

Startup and Power

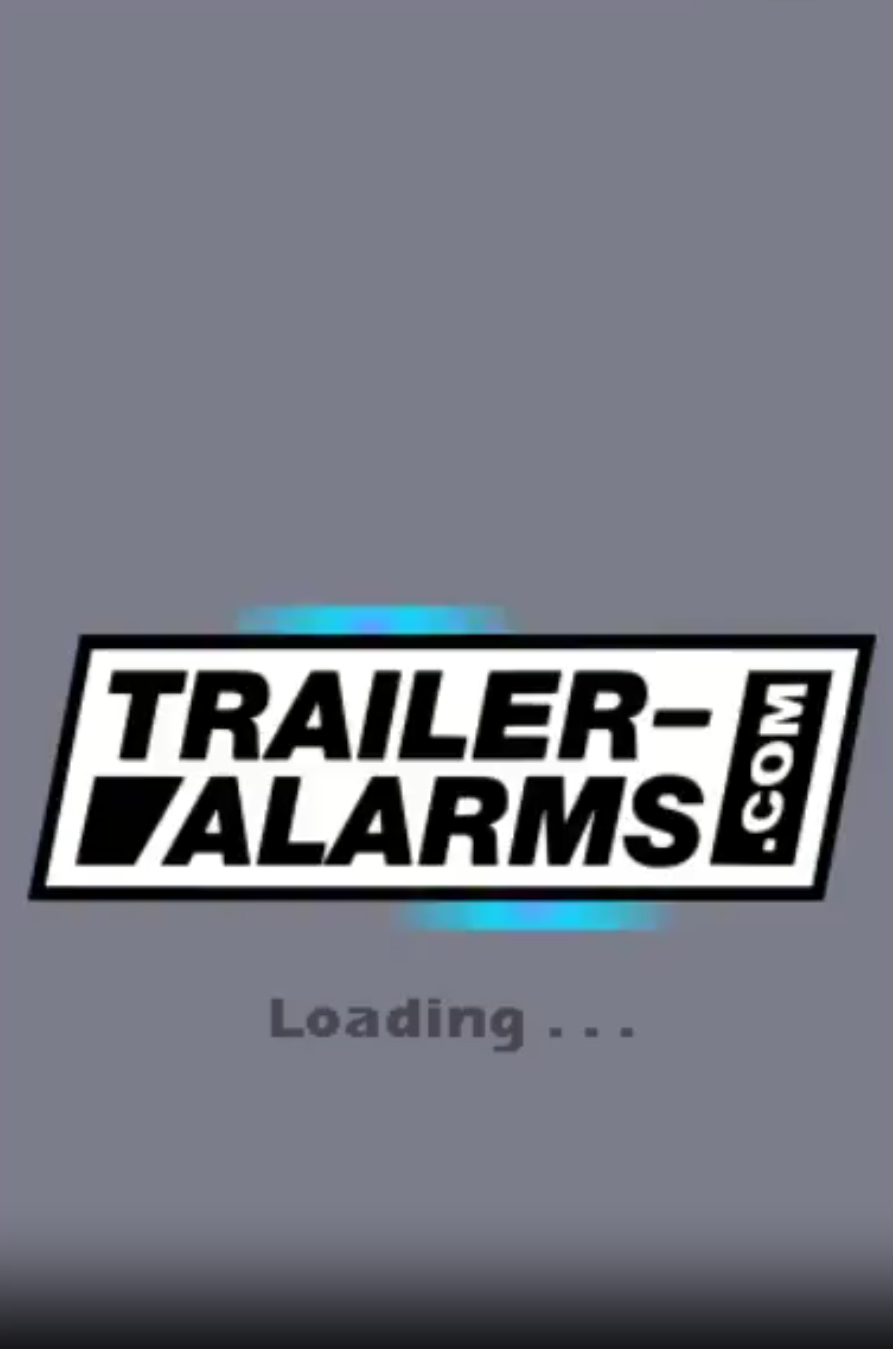

• The keypad takes 2.5 minutes to start after power is connected.
• If power is removed, it will take 2.5 minutes to restart again.
• The keypad has an internal microcomputer that saves users and log files, even if power is lost.

Wiring Connections
This keypad connects to any PTS-2 alarm using 4 wires.
If the wires are too short for your installation, extend them by soldering additional length.

• Red – +12V
• Black – Ground
• Green – Key SW
• Blue – AUX

Password and Admin Area

• Default admin password: XXXX.
• Test the system with this password before changing it.
• If you forget the password, you may return the unit for reset.

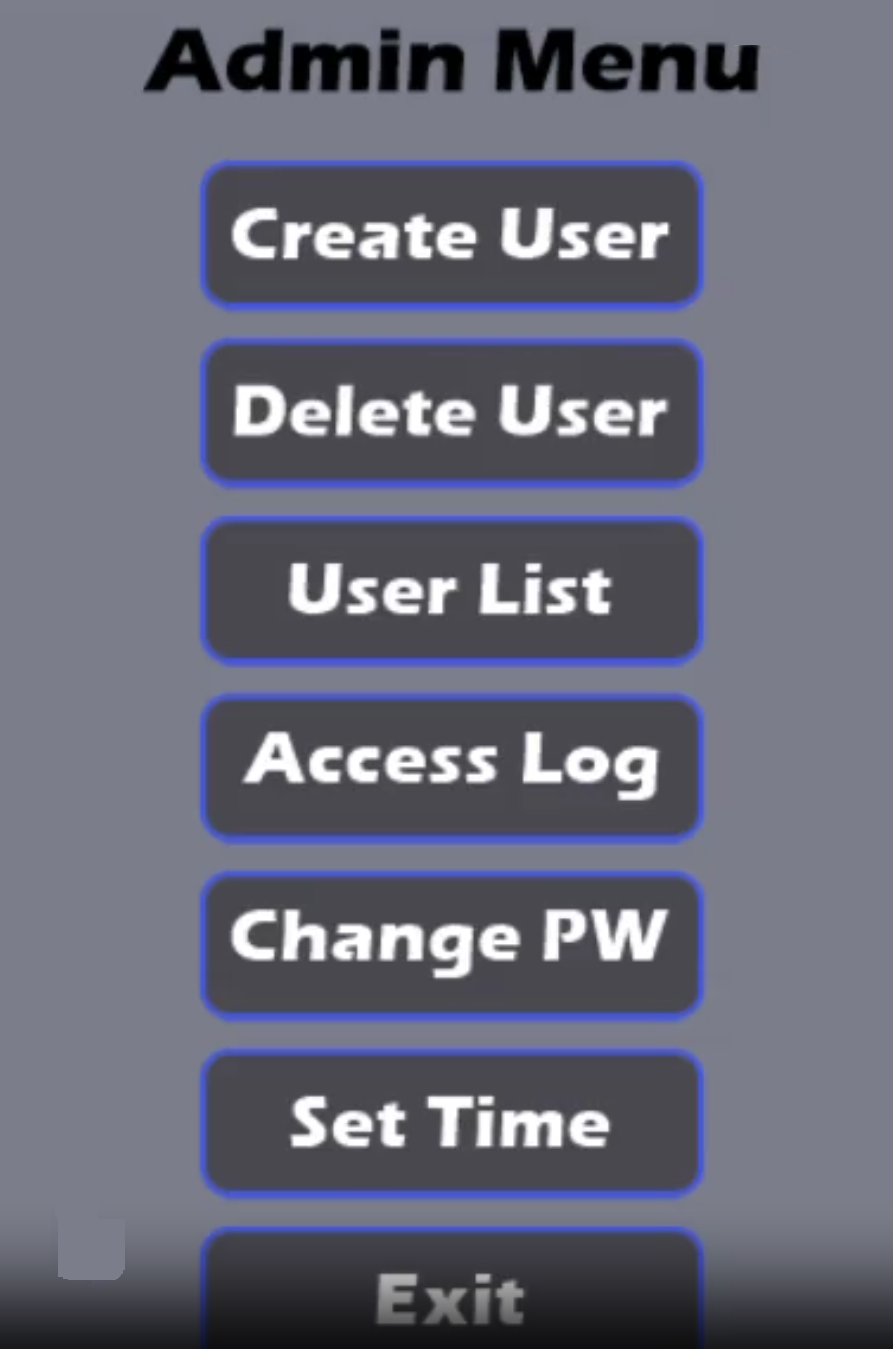

• To access the admin menu, press the Trailer-Alarms.com logo and enter the admin password.

Admin Functions

• Add or remove users.
• View log files.
• Logs are stored for a limited time. Heavy use will overwrite older entries.
• Do not expect logs to cover multiple months.

Power Consumption

• Boot up - 350 mA
• Once booted - 200 mA
